Vehicle LED Film Viewer FV-2009 PRO-V
Product Characteristics
- Can be powered either through the 12V car cigarette lighter socket or used with a 110V-220V AC power supply.
- Use key "+"and "-"to control the luminance(so no potentiometer any more). From 0% to 100%, there are 13 steps.
- Long press the "+", will dim to maximum. And long press the "-", will dim to minimum.
- All the connectors and switch are water proof style.
- The enclosure of viewer is sealed.
- The PCB board is sealed at all. So the electron components will no contact with corrosive air and moisture. See attached picture.
- And the LED board is coated by transparent coating. Will protect them from corrosive air and moisture effectively.

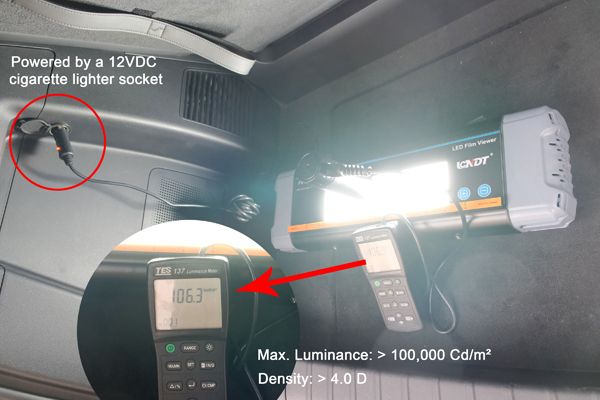

The FV-2009 PRO-V is specially designed for use in vehicles and in the field. It can be powered either through the 12V car cigarette lighter socket or used with a 110V-220V AC power supply. This allows it to be conveniently connected directly to a vehicle without the need to purchase an additional and expensive inverter.
Since the device is fully sealed, it is waterproof and can be used to directly view wet films. Equipped with ultra-bright LED chips, it is capable of handling films with a density of up to 4.0. It can be considered the best choice for mobile field work currently available.
Luminance distribution of the view window (Unit: Cd/m2):
| 101,300 | 102,000 | 103,400 | 102,400 |
| 103,000 | 105,000 | 105,080 | 103,080 |
| 101,500 | 103,300 | 104,600 | 103,000 |
Spare parts list:
Car Cigarette Lighter with 5m Cable: 1
Foot pedal: 1
Carrying bag: 1
Light mask (150 x 45mm): 1
Instruction(English):1
Guarantee and report(English) :1
| Max Luminance: >=105,000Cd/M2(329,700Lux) | Uniformity: g>=0.9 |
| Diffusion Factor: σ'>=0.95 | Viewer window: 200 x 60mm |
| Car Cigarette Lighter POWER: 12Vdc |
AC POWER: 85-264VAC 47~63Hz. (Full range) |
| Surface temp. rise ≤ 15oC After 12 hours continues maximum luminance |
|
| Dimension: 17.9 x 5.5 x 2.6" 455 x 140 x 65mm (L x W x H) |
Weight: 5.5pounds(2.5kg) |
| Complies with ISO 5580 and EN 25580 | |
| CE Approved | 2 Years Free Warranty |
