Portable 4.5x17" screen LED Film Viewers + Densitometer FV-2010T PLUS
Product Characteristics
FV-2010T PLUS LED Film Viewer is developed according to the Norm of ISO5580 Industrial radiographic illuminators - Minimum requirements. Inherited fine traditions of FV-2010 and FV-2009T, adopt powered LED area light source, enable the viewer to high luminance and excellent uniformity, theoretical lifetime span up to more than 50,000 hours.
As a new member of FV series LED film viewer, thanks to its large window design, FV-2010T PLUS is extremely suitable for fieldwork where large film was used. Can view films to 4.1H/D, meet the needs of daily use. It adopts constant current power which is specially designed to the viewer. With its help, the LED will be protected notablely, so the lifetime can be extended. For the sake of Safety use, low voltage PWM unlimited dimmer is used. Foot mode and hand mode are equipped.
What is electronic light mask?
Traditionally we use a series of metallic light masks which are mount on the surface of film viewers. It is inconvenient when you replace the light masks when you want to change the size of light, and energy waste because it just mask the light where you do not need, but the entire light screen is still turn on.

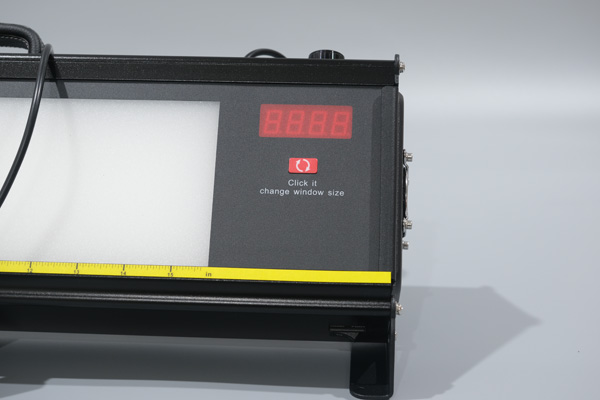

Electronic light mask is electronics controlled, the light screen is divided into 6 parts, you can turn on or turn off each parts of light screen by press one key. With the help of it, you just turn on the area you need, it will be convenient when you change the size of light, low heat and low energy cost.
Luminance distribution of the view window (Unit: Cd/m2):
| 128,000 | 128,000 | 130,000 | 128,000 |
| 128,000 | 129,000 | 130,000 | 129,000 |
| 127,000 | 128,000 | 129,000 | 128,000 |
Spare parts list:
Power adaptor :1
Power line: 1
Foot pedal: 1
Light mask (400×70mm): 1
Instruction (English) :1
Guarantee and report (English): 1
| Max Luminance: ≥130,000Cd/M2(408,200Lux) | Uniformity: g≥0.95, Diffusion Factor: σ’≥0.95 |
| Accuracy：±0.02D, Max. Density(Densitometer)>= 5.0D | Viewer window: 400×100mm (15.8×4 inch) |
| Surface temp. rise ≤ 18oC After 12 hours continues maximum luminance |
POWER: 85-264VAC 47~63Hz. (Full range) |
| Dimension: 600×80×160mm 23.6×3.1×6.3 inch (L×W×H) |
Weight: 4Kg (8.8 lbs) |
| Complies with ISO 5580 and EN 25580 | |
| CE Approved | 2 Years Free Warranty |
